| HS4 |
|
|
| Speaker type |
2-way powered speaker, Bass-reflex type |
| Frequency response (-10dB) |
60 Hz – 22 kHz |
| Frequency response (-3dB) |
83 Hz – 20 kHz |
| Crossover |
2.3 kHz |
| Maximum Output Level (Measured peak, IEC noise@1m) |
102 dB SPL |
| Components |
HF |
1″ Dome |
| LF |
4.5″ Cone |
| Nominal impedance |
6 Ω |
| I/O connectors |
[Input Connector] L Side: COMBO (XLR/TRS Phone) ×2, RCA ×2, Stereo Mini, R Side: Speaker Input; [Output Connector] L Side: Headphone, Speaker Output |
| Output power |
26 W + 26 W (Dynamic, RL=6 Ω), 20 W + 20 W (THD 0.1%, 1kHz, RL=6 Ω) |
| Input sensitivity |
LINE 1 (COMBO): +4 dBu, LINE 2 (RCA, ST Mini): -10 dBu (Volume: Maximum) |
| Input Level |
LINE 1 (COMBO): +20 dBu, LINE 2 (RCA, ST Mini): +6 dBu (Maximum Input) |
| Input impedance |
LINE 1 (COMBO): 20 kΩ, LINE 2 (RCA, ST Mini): 10 kΩ |

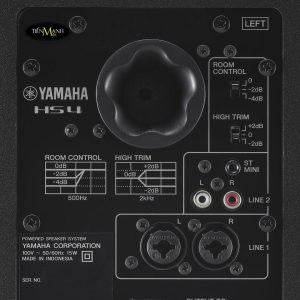

| Controls |
Front: Volume, Rear: ROOM CONTROL SWITCH (0/-2/-4 dB under 500 Hz), HIGH TRIM SWITCH (+2/0/-2 dB above 2 kHz) |
| Indicators |
Power ON (White LED) |
| Power requirements |
Depending on area of purchase; 100-240 V, 50/60 Hz (*) |
| Power consumption |
15 W |
| Cabinet material |
MDF |
| Dimensions |
W |
L Side: 150 mm (5.9″), R Side: 150 mm (5.9″) |
| H |
L Side: 240 mm (9.4″), R Side: 240 mm (9.4″) |
| D |
L Side: 213 mm (8.4″), R Side: 203 mm (8.0″) |
| Net weight |
L Side: 3.7 kg (8.2 lb), R Side: 3.1 kg (6.8 lb) |
| Accessories |
Stereo Mini – RCA Cable 1.5 m, Speaker Cable 2.5 m, Anti Slip Pad, Quick Start Guide, Safety Guide |
| Packaging |
Pair |
