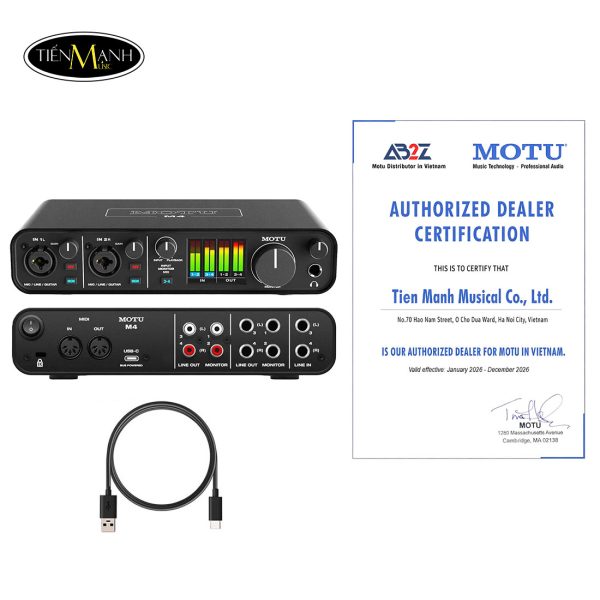

Soundcard Motu M4 USB-C Audio Interface
I/O
- 2x mic/line/Hi-Z guitar inputs
- 2x balanced 1/4-inch line inputs
- 4x balanced 1/4-inch TRS out
- 4x RCA analog out (mirrored)
- 1x stereo headphone w/volume
- 1x MIDI in/out
SYSTEM REQUIREMENTS
- macOS 10.11 or higher
- Windows 10 or higher
- iOS 9 or higher
Thông Số Kỹ Thuật Soundcard Motu M4 USB-C Audio Interface
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
|---|---|
| Mic/line/guitar | 2 x XLR/TRS “combo jack” mic/line/Hi-Z guitar inputs Independent preamp gain, 48V phantom power and monitor switch for each input |
| Analog inputs | 2 x 1/4″ line in |
| Analog outputs | 4 x 1/4″ TRS line out (balanced, DC coupled) 4 x RCA (unbalanced) analog out (mirrored) 1 x 1/4″ TRS stereo headphone |
| Computer I/O | 1 x USB-C (compatible with USB Type A) 2.0 audio class compliant |
| MIDI I/O | 1 x MIDI IN 1 x MIDI OUT 16 MIDI channels to/from computer host |
| Headphone | 1 x 1/4″ TRS stereo phone |
| Phantom power | 2 x individual +48V |
| Front panel | 1 x 1/4″ TRS headphone output 2 x XLR/TRS combo inputs 1 x potentiometer • monitor vol 1 x potentiometer • phone vol 1 x potentiometer • input monitor mix 2 x potentiometer • mic/line/guitar input gain 5 x switches • (2) 48V, (2) MON and (1) 3-4 160 x 120 pixel full-colored LCD with input and output level meters |
| Power | Bus-powered through USB |
| Dimensions and weight | (width x depth x height, enclosure only) 8.25 x 4.25 x 1.75 inches 20.955 x 10.8 x 4.5 cm 1.55 lbs / 0.7 kg |
System Requirements
| Mac System Requirements | Intel Core i3 Mac or faster (including the new Apple silicon Macs) 2 GB RAM; 4 GB or more recommended macOS version 10.11 or later (Optional driver requires 10.13 or later) Available USB port A large hard drive (at least 500 GB for recording) |
|---|---|
| Windows System Requirements | 1 GHz Pentium-based PC compatible or faster 2 GB RAM; 4 GB or more recommended Windows 10 Available USB port A large hard drive (at least 500 GB for recording) |
| Class-Compliant Support | USB audio class compliant for plug-and-play operation on Mac or iOS (no driver required) |
| Included Software | MOTU Performer Lite Ableton Live 10 Lite 6GB of loops and sounds from Big Fish Audio, LucidSamples, Loopmasters and MOTU |
