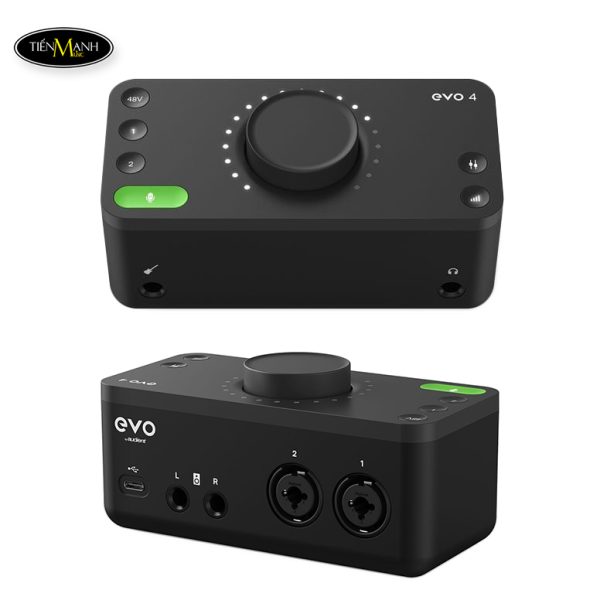

Soundcard Audient EVO 4 – Audio Interface
Soundcard Audient EVO 4 – Audio Interface
| Mic Gain Range: | 58dB |
| Line Gain Range: | 58dB (-10dB pad) |
| Phantom Power: | 48v +/-4v @ 10mA/Channel |
| Mic EIN: | <-128dBu |
| CMRR: | >85dB @ 1kHz |
| Maximum Input Level: | +16dBu |
| Input Impedance (Mic): | >3kΩ Balanced |
| Input Impedance (Line): | >10kΩ Balanced |
| Frequency Response: | +/-0.5dB 10Hz to 40kHz |
| Crosstalk: | <-105dBu @ 1kHz & 10kHz |
| THD+N @ 0dBu (1kHz): | <0.0015% |
| SNR: | 100dB |
| XLR: | Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield) |
| 1/4” Jack: | TIP (Hot), RING (Cold) & SLEEVE (Shield) |
ADC INPUTS
| Digital Reference Level: | 0dBFS = +8dBu |
| Frequency Response: | +/-0.5dB 10Hz to Fs/2 |
| Crosstalk: | -105dBu @ 1kHz & 10kHz |
| THD+N @ -1dBFS (1kHz): | <0.001% |
| Dynamic Range: | 113dB A-weighted |
DAC OUTPUTS
| Maximum Output Level: | +11dBu |
| Digital Reference Level: | 0dBFS = +11dBu |
| Output Impedance: | <100Ω Balanced |
| Frequency Response: | +/-0.5dB 10Hz to Fs/2 |
| Crosstalk: | <-110dBu @ 1kHz |
| THD+N @ -1dBFS (1kHz): | <0.0015% |
| Dynamic Range: | 113dB A-weighted |
| 1/4” Jack: | TIP (Hot), RING (Cold) & SLEEVE (Shield) |
